项目(Item) | 描述(Description) |
| 产品型号(Model) | HXT7003HK-355-DCT |
| 显示类型(Display Type) | 7.0 inch TFT Normally Black |
| 分辨率(Resolution) | 1024*RGB*600 |
| 显示色彩(color) | 16.7M |
| 视角(View Angle) | Full View |
| 驱动IC(Driver IC) | ST |
| 接口类型(Interface Types) | RGB24Bit |
| 连接方式(Connection mode) | 0.5mm插接50Pin |
| 背光模式(Backlight) | 3串9并27颗灯 |
| 产品功耗(power consumption) | 背光：180mA@9V(定电流);LCD:50mA@3.3V |
| 产品亮度(Brightness) | 500cd/m² |
| 触摸屏(Touch Panel) | CTP |
项目(Item) | 规格(Specification) | 单位(Units) |
| 外形尺寸(Outline Dimension) | 165*100*4.7 | mm |
| 显示区尺寸(Active Area Dimension) | 153.54*85.63 | mm |
| 解析度(Resolution Dimension) | 1024*3RGB*600 | / |
| 像素点尺寸(Pixel Pitch Dimension) | 0.0502(H)×0.143.2(V) | mm |
| 结构类型(Structure Type) | COG+FPC+BL (note) | / |

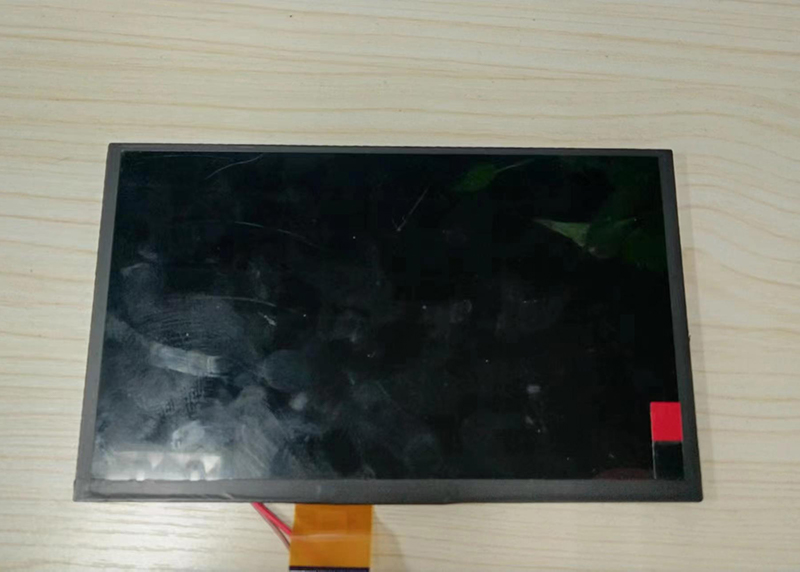

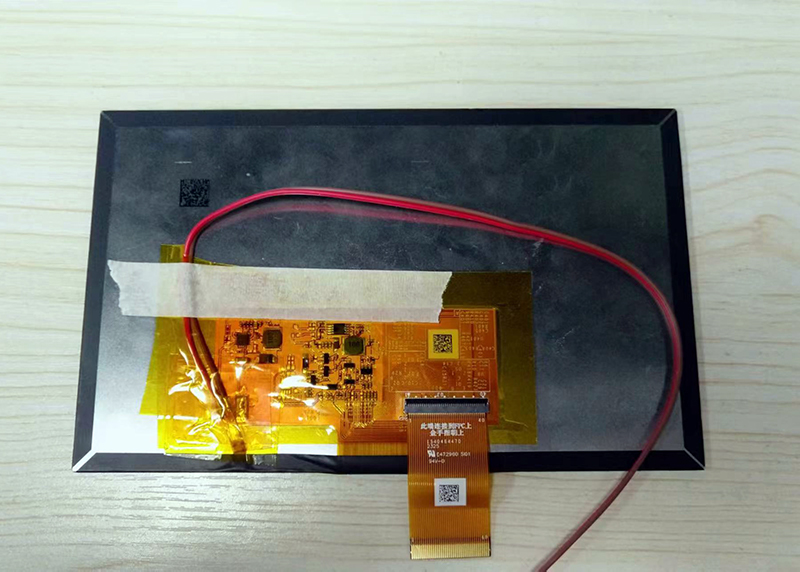

888集团7寸液晶屏 HXT7003HK-355-DCT 产品手册
