Part No. | MODE | VIN | VOUT | IQ | FOSE | Eff. | Accu. | power switching | IOUT | Package | Application |

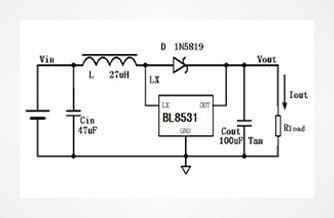

BL8531 | PFM | 0.8~5.5V | 2.5~6V | 4μA | 450KHz | 0.85 | ±2% | Internal MOSFET | 300mA | SOT89-3, SOT23-3, SOT23-5 | MP4, 应急充, 鼠标, 玩具 |
BL8531C | PFM | 0.8~5.5V | 2.5~6V | 6μA | 400KHz | 0.9 | ±2% | External MOSFET |
| SOT89-5, SOT23-3, SOT23-5 | MP4, 应急充, 鼠标, 玩具 |
BL8536 | Sync Boost PWM | 0.9~5V | 1.8~3.6V | 8μA | 1000KHz | 0.94 | ±2% | Internal Sync Rectifier | 300mA | SOT89-3, SOT23-3 | 玩具, 鼠标 |
