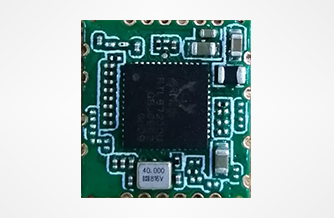

HXT0502 is based on Realtek RTL8723DU, complied with IEEE 802.11b/g/n &BT2.1/4.2 standard from 2.4-2.5GHz.This documentation describes the engineering requirements specification.
HXT0502 is based on Realtek RTL8723DU, complied with IEEE 802.11b/g/n &BT2.1/4.2 standard from 2.4-2.5GHz.This documentation describes the engineering requirements specification.
The general HW architecture for the module is shown in Figure 1. This WLAN+BT Module design is based on Realtek RTL8723DU. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in s single chip. The RTL8723DU provides a complete solution for a high-performance integrated wireless and Bluetooth device. The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated dynamic power control.
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
Bluetooth 2.1/4.2
Realtek：RTL8723DU
12.2mm×12.9mm×1.9mm
型号 | 模式及版本 | FLASH | ROM | SRAM | 传输速度 | 休眠 | Tx 0dBm峰值 | 接收灵敏度 | 发射功率 | 尺寸 |
WIFI+BLE5.2 | 1M/2M | — | 288K | 1Mbps | 0.5μA | — | — | — | 20.0mm×18.0mm | |
WIFI+BLE5.2 | 2M | — | 288K | 1Mbps | 0.5μA | — | — | — | 16.0mm×13.0mm | |
WIFI+BEL |
|
|
|
|
| — | — | — | 31.4mm×18.0mm | |
WIFI+BLE |
|
|
|
|
| — | — | — | 12.9mm×12.2mm | |
WIFI+BEL | 2MB |
| 288K |
|
| — | — | — | 24.0mm×16.0mm | |
WIFI | 2MB/1MB |
| 288 |
|
| — | — | — | 12.0mm×10.0mm |
备注：表"— "的详见数据手册
